FujiMAC R2 Series Air Pump Maintenance

Maintenance Info
Maintenance

Inspection & Maintenance as required

A diaphragm change is only permitted by trained maintenance personnel. Work on electrical components may only be carried out by qualified electricians in accordance with the applicable regulations.

Download Manual Diaphragm Replacement

Air Filter

INSPECT AND CLEAN EVERY 3 OR 4 MONTHS AND REPLACE EVERY YEAR

In order to optimize the lifespan of the air filter when it is used in areas where dust accumulation may be high, frequent maintenance is required. If the air filter gets too dirty, replacement will be necessary.

Neglecting this note may cause abnormal heat generation, decrease in air flow volume, and/or early breakdown of the diaphragm.

DIAPHRAGM/VALVE

REPLACE THE DIAPHRAGM/VALVE EVERY YEAR

If the diaphragm/valve becomes damaged, the automatic -stop function engages (except MAC40RII). Further action must be taken to rectify the problem or deterioration of the use point due to an inoperable air pump may result. A discernible odour will be present in this event. The diaphragm/valve assembly should be replaced before it gets damaged.

Neglecting this note may adversely affect the performance of the use point.

PRESSURE

HIGH PRESSURE IS STRICTLY PROHIBITED

Irregular heat generation and/or early diaphragm breakage may result if operation of the air pump is sustained at an abnormally high pressure. The accepted value for the working pressure between the use point and the air pump is +/- 20 % of the normal pressure which is specified on the pump name plate.

Neglecting this note may cause material damage.
Working air pump is hot! While operating, the lower part of the air pump gets hot. Do not touch directly. Neglecting this note may cause injury and burn.

POWER PLUG

FIRE ACCIDENT PREVENTION

Check whether any dirt and/or dust has built up on the power plug at least once a year and insert to the base and fit firmly. Dirt/dust accumulation and/or a faulty connection may cause electric shock and/or a fire accident.

AUTO-STOP FUNCTION

MAKE SURE TO INSPECT THE FUNCTION EVERY TIME THE DIAPHRAGM/VALVE ASSEMBLY IS REPLACED

Remove the auto-stop piece and put in the plug to ensure the auto-stop function works properly. After checking, disconnect the plug from the power point and set the auto-stop piece in the right position. (See below)

Make sure to turn off the power when replacing the diaphragm/valve assembly and/or handling the auto-stop piece. Neglecting this note may cause an electric shock.

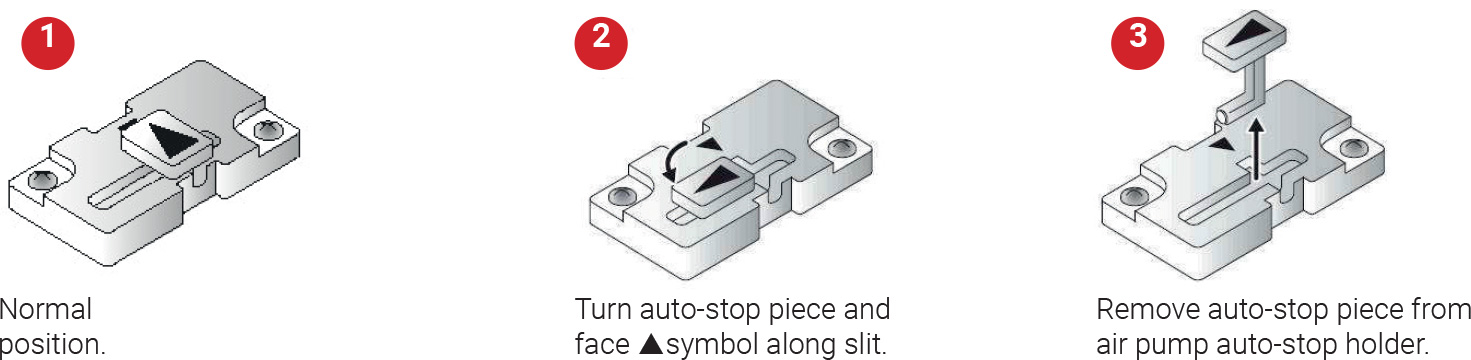

1 HOW TO REMOVE AN AUTO-STOP PIECE

Remove Auto Stop

Watch Video

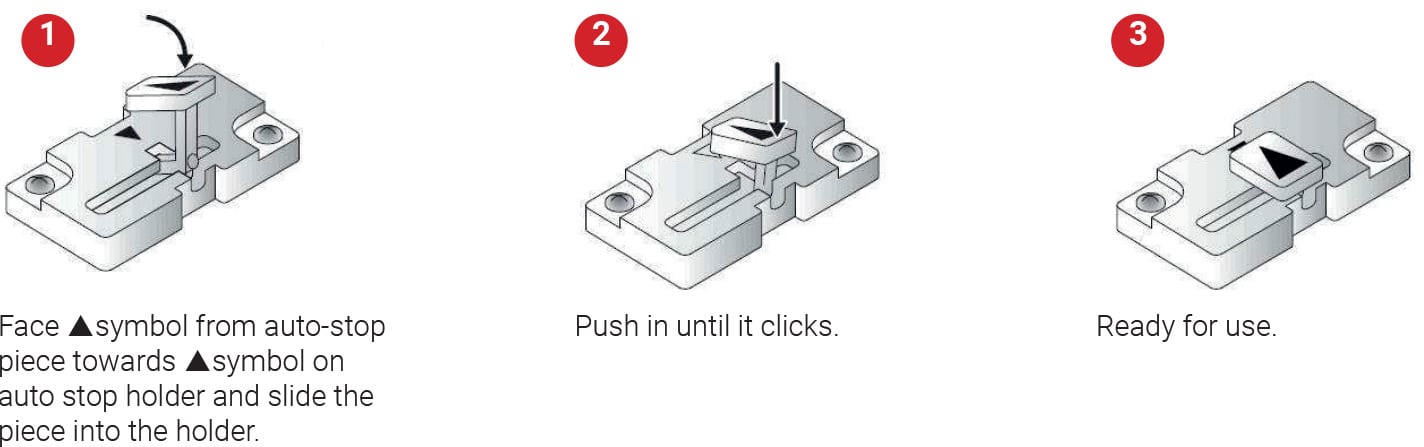

2 HOW TO SET AN AUTO-STOP PIECE
